형식
6TF-07C 6TF-1C 6TF-3C 6TF-5C
7TF-7A 7TF-12A 7TF-25B 7TF-40B
8TF-12A 8TF-20A 8TF-40B 8TF-60B
11TF-25A 11TF-35A 11TF-85B 11TF-120B
14TF-30A 14TF-45A 14TF-120B 14TF-180B
T (kgfm)
0.2~0.7 0.3~1.0 1.0~3.0 1.5~5.0
2.2~7 4~12 8~25 12~40
5~12 7~20 12~40 20~60
8~25 12~35 22~85 35~120
11~30 15~45 42~120 60~180

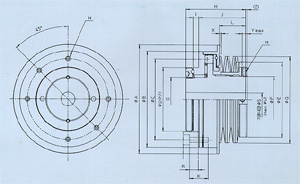

A
88
128
164
198
236
B
75
113
138
170
206
C
PCD 75
PCD 95
PCD 120
PCD 148
PCD 180
D
60 h7
75 h7
100 h7
120 h7
150 h7
E
58
108
134
158
F
M40 P1.5
55
96
120
G
M52 P1.5
M72 P1.5
M90 P1.5
M120 P1.5
H
60
70
82
95
105
I
5
6.6
7.6
9.6
10.4
J
48
65
85
K
R+7
R+9
R+11
R+13
R+15
L
25.0 25.0 25.0 25.5
30.0 31.0 30.0 31.0
37.5 38.5 37.5 38.5
42.0 43.0 42.0 43.0
43.5 44.5 43.5 44.5
M
2-M5 P0.8
2-M6 P0.75
N
6-M6 P1 깊이7
6-M6 P1 깊이9
6-M8 P1.25 깊이11
6-M10 P1.5 깊이13
6-M12 P1.75 깊이15
Q
102
130
160
186
S
12.5
16.5
27
U
30
40
52
68
90
X
1.3 2.0 1.3 2.0
1.6 2.5 1.6 2.5
2.0 3.0 2.0 3.0
2.2 3.5 2.2 3.5
(Z)
3.9 3.2 3.9 3.2
1.7 0.9 1.4 0.6
0 -0.8 -0.7 -1.5
2.0 1.0 -0.7 -1.5
4.2 2.9 3.2 1.9
>
